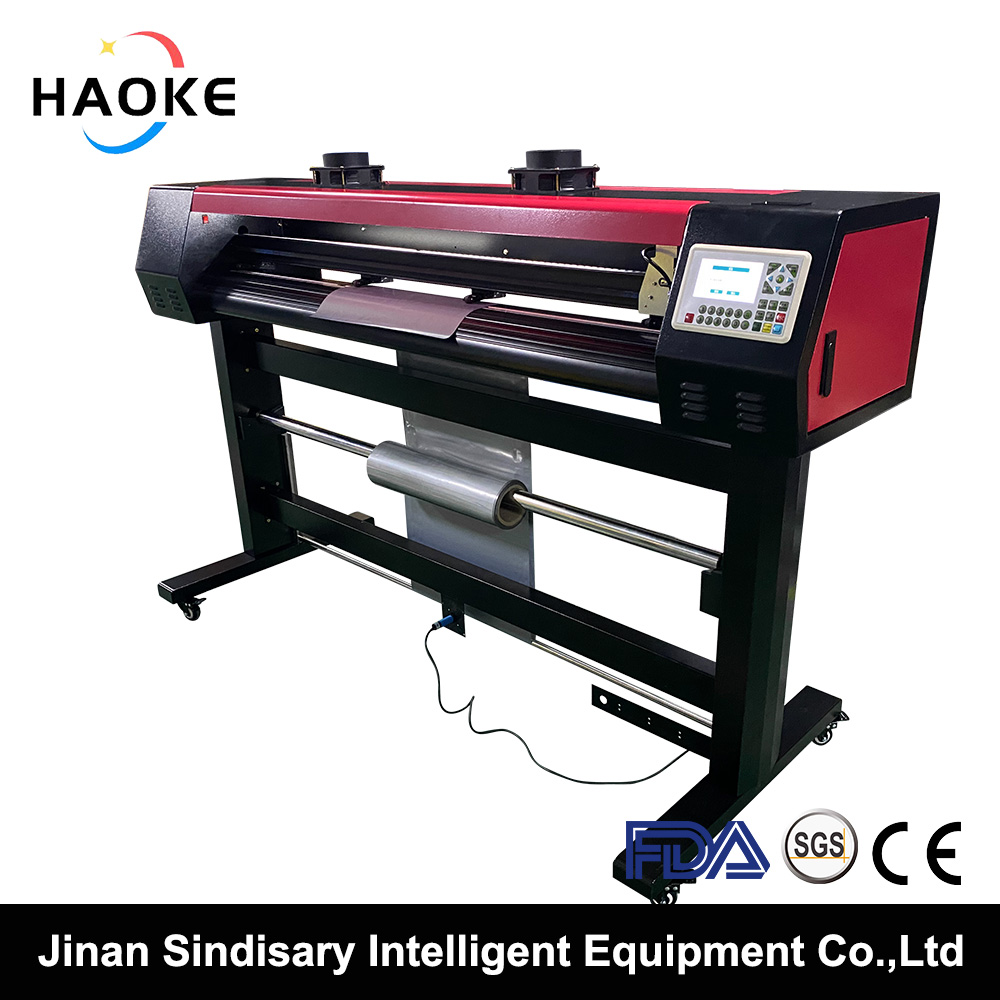

HAOKE-1730LASER  1730mmAuto Laser Cutter Plotter with Laser and Blade /Contour /Vinyl Cutter Plotter

Detail
Code HAOKE-1730LASER

Product Description


ModelHK-980LASER                               (HK-980LASER AUTO)HK-1380LASER                               (HK-1380LASER AUTO)HK-1730LASER                               (HK-1730LASER AUTO)
Material madeProfessional designed stand type metal frame
Max. feeding width980mm1380mm1730mm
Max. cutting width820mm1220mm1570mm
Driving typeVertical roller driving type
Driving motorStepping motor
PC interfaceRS232 serial port or USB or U DISK
Laser headDesigned by HAOKE
Laser modehollow, engraving, cutting, drawing.(HK-980LASER AUTO,HK-1380LASER AUTO.HK-1730LASER AUTO Has edge cutting.)
KnifeInternal rotary style (Roland© standard type blade)
Knife modeSame as a general cutting plotter
Plotting penStandard water based ball point pen refill
Plotting modeSame as a general cutting plotter
Power supplyAC220V/110V ±5%, 50Hz-60Hz
Total power50W ~ 200W (depending on mode of operation)
Laser tube power50W
Cutting speedMin.10mm/S ~ Max. 800mm/S
Cutting pressureMin. 10g ~ Max. 500g(Knife mode)
Resolution0.0254mm/step
Repeat accuracy0.0127mm
Language formatHPGL compatible
Baud rate38.4K
Data transmission8 data bits, 0 parity bit, 1 stop bit
Water-load protection (laser)yes
Uncover protection (laser)No
Working environment5-40ºC, 5-90% R.H. (without condensate)   Keep away from the environment with dust or high electromagnetic interference
Control panelLCD display + key + switch + test + current regulation + current indication
Min. characterChinese character: 3mm; letter: 2mm; (varies depending on character font and media)
Laser current range0-20mA
Interface typeSerial port/USB/U disk
Machine net weight46.3KG51KG61KG
Net weight of water pump and air pump2.5KG
Weight of wooden case and accessories21KG31.5KG36.5KG
Package size1570mm*535mm*490mm1970mm*535mm*490mm2320mm*535mm*490mm

export package (plywood case package)export package (plywood case package)export package (plywood case package)
Packed weight70KG(including standard configuration and wooden case)85KG(including standard configuration and wooden case)100KG(including standard configuration and wooden case)
Machine dimensions1420mm*700mm*1060mm1820mm*700mm*1060mm2170mm*700mm*1060mm
Applicable materialSoft and thin nonmetal material, such as paperboard, cutting vinyl
Application rangeCurrently, this machine has been widely used for apparel, label, outdoor signs, lamp-box, screen printing, car decoration, etc.
Remarks:

When the power is 110 V,the weight is 2kg increased.
